Cricket bat-gated pose-library — 17 / 18 / 19 关节并行对比

Stage 0 bat-event gate → Stage 1 subjectness 选人 → Stage 2 库匹配。 gate 与选人三变体共享，只替换 Stage-2 库：17 纯人体 · 18 +bat中心(best.pt 检测器) · 19 +handle/tip 角度(训练的 bat-kp 模型)。 测试集 = Video Set 1 (7 非板球, gate 应拒) + batting (3 板球)。 匹配库暂时只含 batting 模板(47 个 exemplar，已去掉 bowling/fielding)，所以结果只会是击球姿态。 每段视频画实时分数曲线(gate_prob + sim17/18/19 over time)，下面三列分别是各变体 Top-3 peak(渲染帧→最近模板)。 帧上绿色粗框 = 匹配中的那个人(pose)，叠加身体骨架 + ●bat中心 + ●握把→●棒尖；其他人灰细框。
urban_cricket (4 videos)

6501150186088172813 bean 行走印度 加尔各答 街头板球

dur 15.0s · gate yolo (stride 0.3s, thr 0.0) → 9 bat-event peaks / 50 samples · gate max 0.00 · gallery batting_only (47 ex.) · reject_thr 17/18/19 = 0.284/0.308/0.318
— gate_prob (dashed) — sim 17 — sim 18 — sim 19 ··· thr 0.0 ▶ 播放视频，红线随时间在曲线上移动 · 点曲线或某个 peak 帧可跳转
0.00.20.50.81.00s1s2s3s4s5s6s7s8s9s10s11s12s13s14s

17 body-onlytop sim 0.885

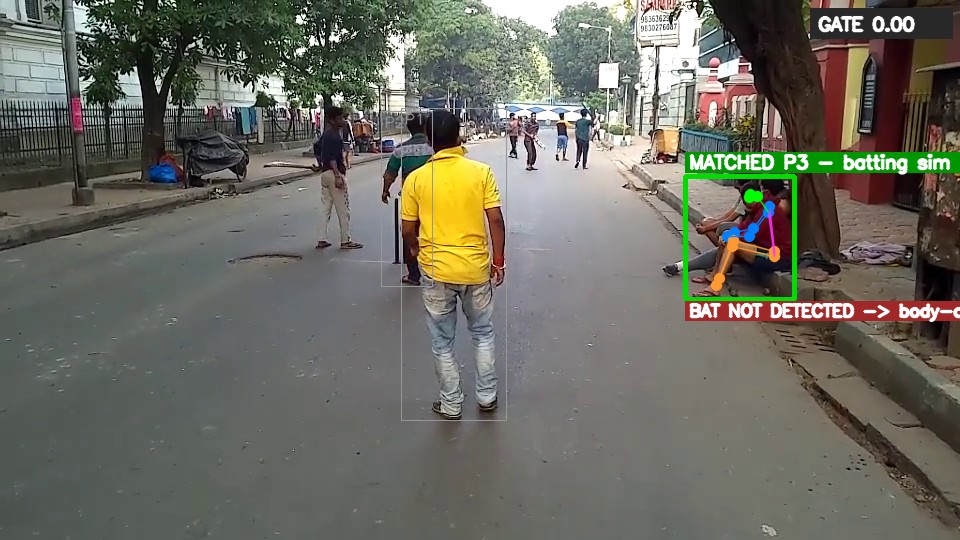

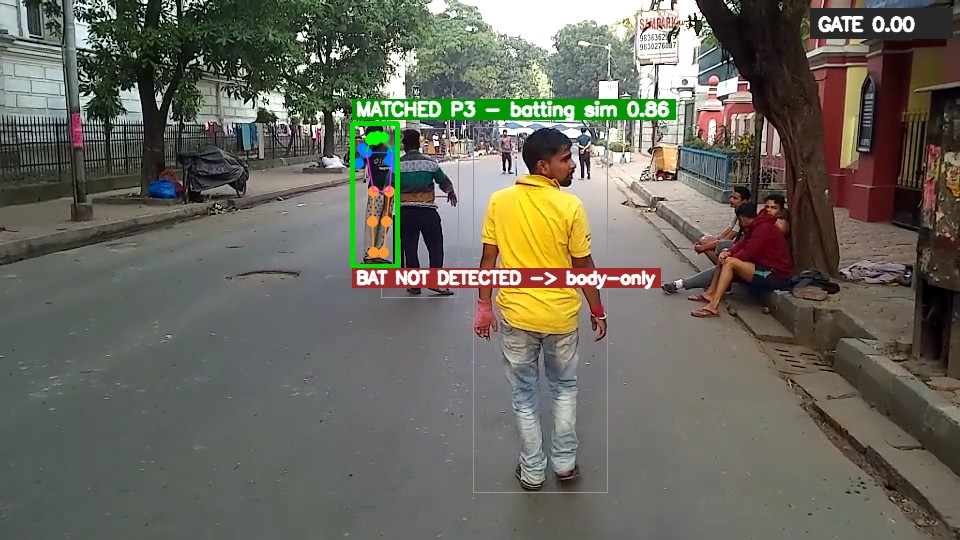

#1 t=8.1s · sim 0.885 · gate 0.00 · bat n/a (17)
→
batting d=0.130
#2 t=11.1s · sim 0.858 · gate 0.00 · bat n/a (17)
→
batting d=0.166 ↔

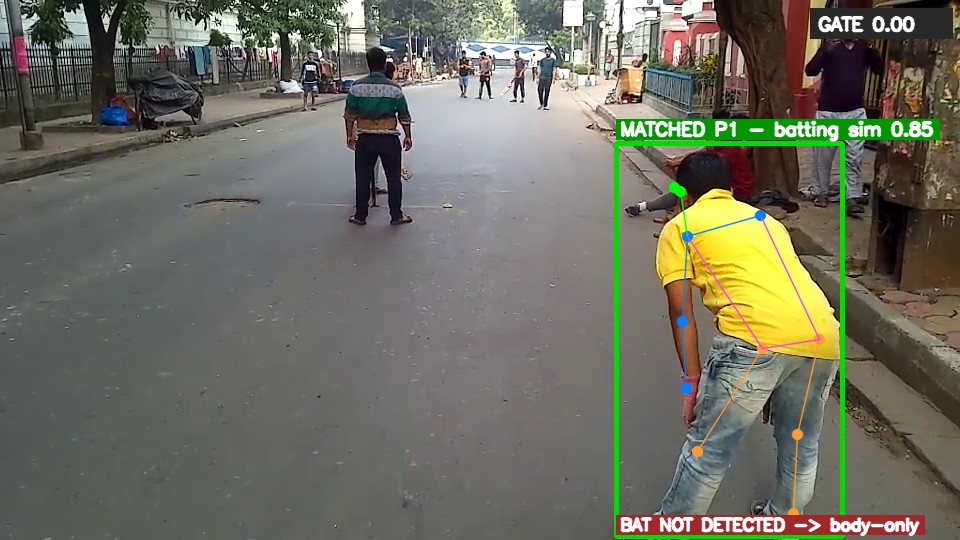

#3 t=0.9s · sim 0.850 · gate 0.00 · bat n/a (17)
→
batting d=0.176

18 +bat centertop sim 0.885

#1 t=8.1s · sim 0.885 · gate 0.00 · bat ✗ → body-only
→
batting d=0.130
#2 t=11.1s · sim 0.858 · gate 0.00 · bat ✗ → body-only
→
batting d=0.166 ↔
#3 t=0.9s · sim 0.850 · gate 0.00 · bat ✗ → body-only
→
batting d=0.176

19 +handle/tip (angle)top sim 0.885

#1 t=8.1s · sim 0.885 · gate 0.00 · bat ✗ → body-only
→
batting d=0.130
#2 t=11.1s · sim 0.858 · gate 0.00 · bat ✗ → body-only
→
batting d=0.166 ↔
#3 t=0.9s · sim 0.850 · gate 0.00 · bat ✗ → body-only
→
batting d=0.176

7100461264819784994 南初 #户外活动嗨起来 #是时候展现真正的技术了 #板球 国际友谊赛 板…

dur 33.3s · gate yolo (stride 0.3s, thr 0.0) → 17 bat-event peaks / 112 samples · gate max 0.00 · gallery batting_only (47 ex.) · reject_thr 17/18/19 = 0.284/0.308/0.318
— gate_prob (dashed) — sim 17 — sim 18 — sim 19 ··· thr 0.0 ▶ 播放视频，红线随时间在曲线上移动 · 点曲线或某个 peak 帧可跳转
0.00.20.50.81.00s4s8s12s16s20s24s28s32s

17 body-onlytop sim 0.898

#1 t=13.5s · sim 0.898 · gate 0.00 · bat n/a (17)
→
batting d=0.114
#2 t=32.7s · sim 0.876 · gate 0.00 · bat n/a (17)
→
batting d=0.142
#3 t=13.2s · sim 0.873 · gate 0.00 · bat n/a (17)
→
batting d=0.145 ↔

18 +bat centertop sim 0.876

#1 t=32.7s · sim 0.876 · gate 0.00 · bat ✗ → body-only
→
batting d=0.142
#2 t=13.2s · sim 0.849 · gate 0.00 · bat ✓
→
batting d=0.178 ↔
#3 t=14.1s · sim 0.848 · gate 0.00 · bat ✗ → body-only
→
batting d=0.179 ↔

19 +handle/tip (angle)top sim 0.898

#1 t=13.5s · sim 0.898 · gate 0.00 · bat ✗ → body-only
→
batting d=0.114
#2 t=32.7s · sim 0.876 · gate 0.00 · bat ✗ → body-only
→
batting d=0.142
#3 t=4.8s · sim 0.853 · gate 0.00 · bat ✗ → body-only
→
batting d=0.173 ↔

7302418258601315634 杨海云和巴基斯坦媳妇 忍不住给他们拍下来，板球运动 #马路 #过马路 #交…

dur 164.7s · gate yolo (stride 0.3s, thr 0.0) → 93 bat-event peaks / 549 samples · gate max 0.06 · gallery batting_only (47 ex.) · reject_thr 17/18/19 = 0.284/0.308/0.318
— gate_prob (dashed) — sim 17 — sim 18 — sim 19 ··· thr 0.0 ▶ 播放视频，红线随时间在曲线上移动 · 点曲线或某个 peak 帧可跳转
0.00.20.50.81.00s20s40s60s80s100s120s140s160s

17 body-onlytop sim 0.910

#1 t=21.9s · sim 0.910 · gate 0.00 · bat n/a (17)
→
batting d=0.099
#2 t=39.6s · sim 0.899 · gate 0.00 · bat n/a (17)
→
batting d=0.112 ↔
#3 t=39.9s · sim 0.888 · gate 0.00 · bat n/a (17)
→
batting d=0.126 ↔

18 +bat centertop sim 0.910

#1 t=21.9s · sim 0.910 · gate 0.00 · bat ✗ → body-only
→
batting d=0.099
#2 t=39.6s · sim 0.899 · gate 0.00 · bat ✗ → body-only
→
batting d=0.112 ↔
#3 t=39.9s · sim 0.888 · gate 0.00 · bat ✗ → body-only
→
batting d=0.126 ↔

19 +handle/tip (angle)top sim 0.910

#1 t=21.9s · sim 0.910 · gate 0.00 · bat ✗ → body-only
→
batting d=0.099
#2 t=39.6s · sim 0.899 · gate 0.00 · bat ✗ → body-only
→
batting d=0.112 ↔
#3 t=39.9s · sim 0.888 · gate 0.00 · bat ✗ → body-only
→
batting d=0.126 ↔

7339305726717726004 蔡凡凡fanfan 巴基斯坦，少年，在街头，玩板球。板球，在巴基斯坦，类似…

dur 9.4s · gate yolo (stride 0.3s, thr 0.0) → 5 bat-event peaks / 32 samples · gate max 0.00 · gallery batting_only (47 ex.) · reject_thr 17/18/19 = 0.284/0.308/0.318
— gate_prob (dashed) — sim 17 — sim 18 — sim 19 ··· thr 0.0 ▶ 播放视频，红线随时间在曲线上移动 · 点曲线或某个 peak 帧可跳转
0.00.20.50.81.00s1s2s3s4s5s6s7s8s9s

17 body-onlytop sim 0.868

#1 t=4.2s · sim 0.868 · gate 0.00 · bat n/a (17)
→
batting d=0.152
#2 t=2.1s · sim 0.867 · gate 0.00 · bat n/a (17)
→
batting d=0.153
#3 t=4.5s · sim 0.867 · gate 0.00 · bat n/a (17)
→
batting d=0.154

18 +bat centertop sim 0.868

#1 t=4.2s · sim 0.868 · gate 0.00 · bat ✗ → body-only
→
batting d=0.152
#2 t=2.1s · sim 0.867 · gate 0.00 · bat ✗ → body-only
→
batting d=0.153
#3 t=4.5s · sim 0.867 · gate 0.00 · bat ✗ → body-only
→
batting d=0.154

19 +handle/tip (angle)top sim 0.868

#1 t=4.2s · sim 0.868 · gate 0.00 · bat ✗ → body-only
→
batting d=0.152
#2 t=2.1s · sim 0.867 · gate 0.00 · bat ✗ → body-only
→
batting d=0.153
#3 t=4.5s · sim 0.867 · gate 0.00 · bat ✗ → body-only
→
batting d=0.154
